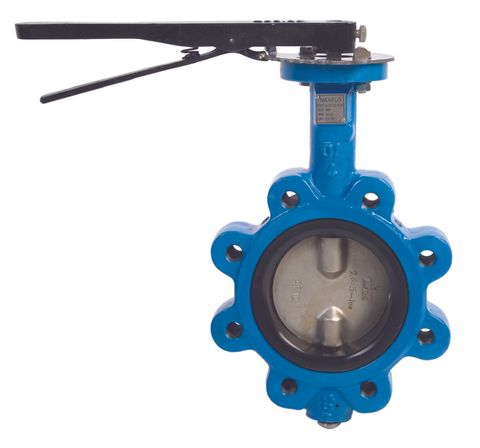

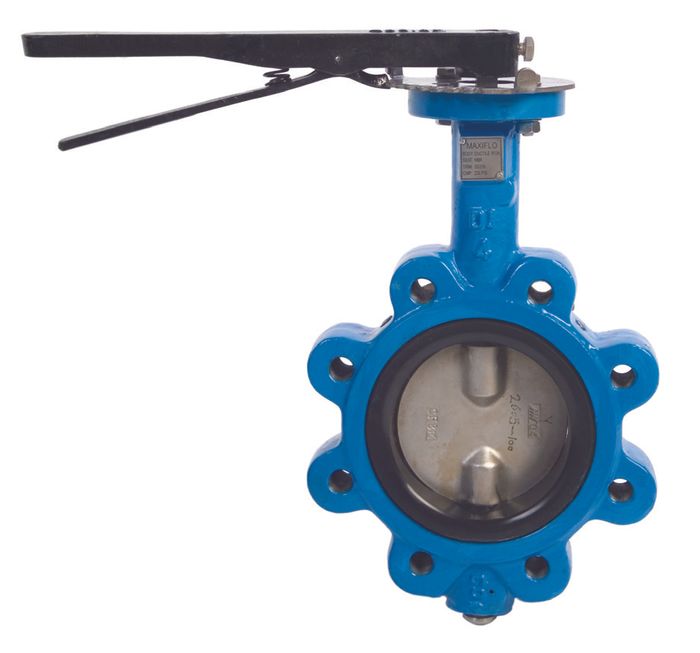

Butterfly Valves Lugged

Description


Resilient seat butterfly valves are used in a wide range of applications including HVAC, gas, water and wastewater treatment along with mining and general industry. They are compact and give bubble-tight shut off as well as having good regulating capabilities


• Compact lugged body


• Metric tapped lugs cast into the body


• Allows fixing of a flange one side at a time


• Can be mounted at the end of a pipeline without the need for a flange on the downstream (discharge) side


• Cold working pressure 1600 kPa


• Top flange compliant to ISO5211

Part Number Details
79410

Details

  • Size:
    50 mm
  • Length:
    42 mm
79411

Details

  • Size:
    80 mm
  • Length:
    48 mm
65032

Details

  • Size:
    100 mm
  • Length:
    55 mm
79412

Details

  • Size:
    150 mm
  • Length:
    59 mm
88037

Details

  • Size:
    250 mm
  • Length:
    66 mm
