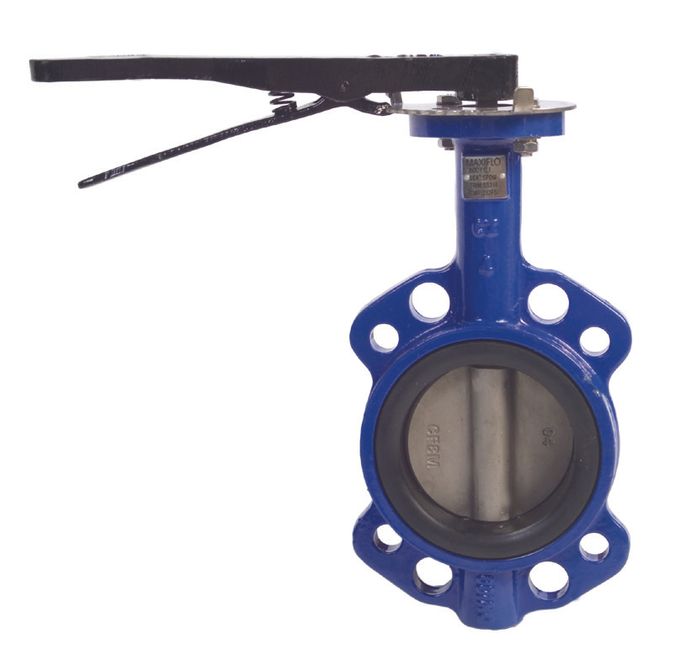

Butterfly Valves Wafer

Description

• Resilient seat butterfly valves are used in a wide range of applications including HVAC, gas, water and wastewater treatment along with mining and general industry. They are compact and give bubble-tight shut off as well as having good regulating capabilities

• Wafer style is designed for inline service


• Relies on a flange either side of the valve to secure it into the pipeline


• Cast iron body, ductile iron handle and a stainless steel 416 stem


• CF8M hub shaft, Teflon® (PTFE) bushing and an NBR O-ring


• Body design is such that it can be used with most international flanges including AS2129, BS10, ANSI, DIN and JIS standards

Part Number Details
79409

Details

  • Size:
    50 mm
  • Length:
    42 mm
88151

Details

  • Size:
    65 mm
  • Length:
    45 mm
79405

Details

  • Size:
    80 mm
  • Length:
    48 mm
79406

Details

  • Size:
    100 mm
  • Length:
    55 mm
79407

Details

  • Size:
    150 mm
  • Length:
    59 mm
