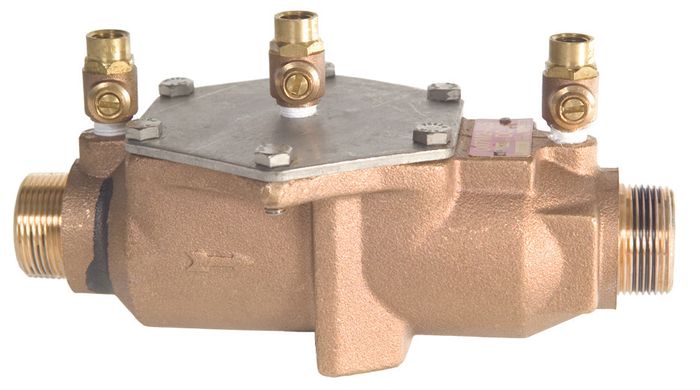

Watts 007 Double Check Valves

Description

• Prevents pollution of potable water supply at cross connection points


• Used in medium hazard situations


• Fully serviceable with all parts readily available, please enquire


• Easy to maintain


• Top entry via single cover


• Modular construction with compact design


• Low pressure drop


• Top mounted test cocks


• Replaceable seats and seat discs


• 15-50 mm cast bronze body, 65-80 fused epoxy coated cast iron body


• Temperature range 5-82°C (15-50 mm) and 5- 43°C (65-80 mm)


• Maximum operating pressure 1200 kPa

Part Number Details
79614

Details

  • Size:
    15 mm
  • Length:
    127 mm
  • Valve:
    Male
79618

Details

  • Size:
    20 mm
  • Length:
    157 mm
  • Valve:
    Male
79619

Details

  • Size:
    25 mm
  • Length:
    191 mm
  • Valve:
    Male
79615

Details

  • Size:
    32 mm
  • Length:
    241 mm
  • Valve:
    Male
79617

Details

  • Size:
    40 mm
  • Length:
    248 mm
  • Valve:
    Male
79616

Details

  • Size:
    50 mm
  • Length:
    340 mm
  • Valve:
    Flange Table C
