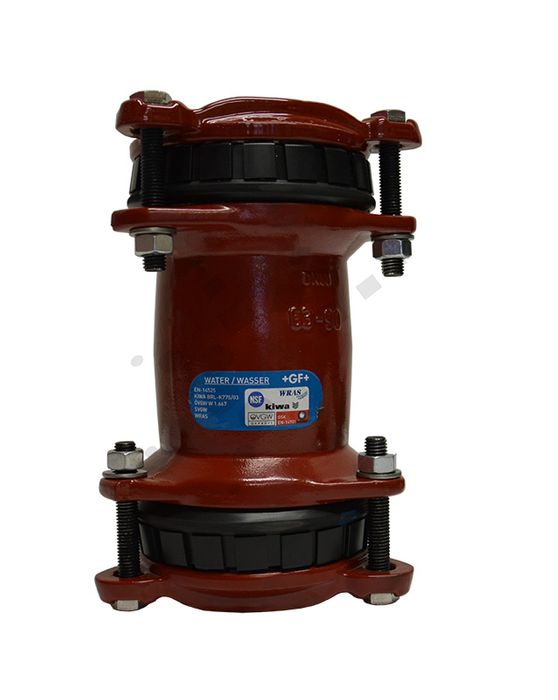

WAGA Multi Joint Couplings

Description

• Suitable for all kinds of pipe material

• Suitable for use with water

• Ductile cast iron GGG45 body and clamping ring(s) in accordance with EN-GJS-450-10

• Resicoat epoxy powder coating, according to AS/NZ 4158

• EPDM gasket in accordance with AS 681.1 (0-50 degrees C)

• Angular deflection of maximum ± 8 degrees per socket at installation (based on middle of range)

• SS316 grade Uni/Fiskers

• SS316 grade bolts, nuts and washers

• For restraint versions on PE and PVC pipes, the use of an insert stiffener is mandatory

• Hygiene cap included

Part Number Details
11777

Details

  • Pipe Size:
    50 mm
  • Pressure:
    1600 kPa
  • Range:
    46-71 mm
  • Size A:
    209-233 mm
  • Size B:
    164 mm
  • Weight:
    4.8 kg
Product Enquiry
Product Enquiry
11779

Details

  • Pipe Size:
    80 mm
  • Pressure:
    1600 kPa
  • Range:
    84-105 mm
  • Size A:
    234-262 mm
  • Size B:
    204 mm
  • Weight:
    7.2 kg
Product Enquiry
Product Enquiry
11781

Details

  • Pipe Size:
    125 mm
  • Pressure:
    1600 kPa
  • Range:
    132-155 mm
  • Size A:
    246-282 mm
  • Size B:
    264 mm
  • Weight:
    12.0 kg
Product Enquiry
Product Enquiry
11782

Details

  • Pipe Size:
    150 mm
  • Pressure:
    1600 kPa
  • Range:
    154-192 mm
  • Size A:
    242-298 mm
  • Size B:
    304 mm
  • Weight:
    14.8 kg
Product Enquiry
Product Enquiry
11783

Details

  • Pipe Size:
    200 mm
  • Pressure:
    1600 kPa
  • Range:
    192-232 mm
  • Size A:
    297-351 mm
  • Size B:
    354 mm
  • Weight:
    28.6 kg
Product Enquiry
Product Enquiry
11788

Details

  • Pipe Size:
    350 mm
  • Pressure:
    1000 kPa
  • Range:
    352-393 mm
  • Size A:
    504-588 mm
  • Size B:
    534 mm
  • Weight:
    61.2 kg
Product Enquiry
Product Enquiry
11789

Details

  • Pipe Size:
    400 mm
  • Pressure:
    1000 kPa
  • Range:
    392-433 mm
  • Size A:
    562-648 mm
  • Size B:
    574 mm
  • Weight:
    73.2 kg
Product Enquiry
Product Enquiry
