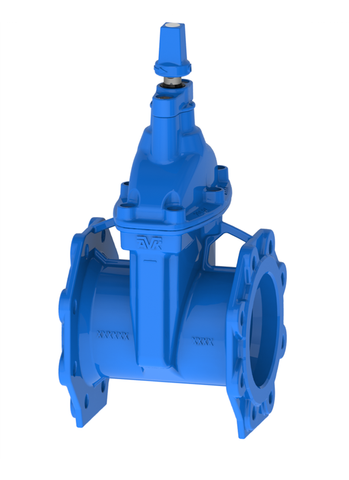

Flange Resilient Seat Gate Valves

Description

• Suitable for water, sewerage and neutral liquid applications


• Ductile iron, epoxy resin coated body and wedge


• Rubber bended ductile gate


• EPDM O-ring and seal bushing and a stainless steel 431 stem


• Maximum working temperature 40°C


• Cold working pressure of 1600 kPa


• Design compliant with AS2638.2 (80-600 mm)


• Flanges compliant with AS4087 and AS2129


• Socket valves compliant with AS2280


• Epoxy resin coating is fully compliant with AS4158


• Certified to AS4020, suitable for contact with drinking water


• Valves are distinguished by white cap for anticlockwise and red cap for clockwise closing

Part Number Details
85278

Details

  • Size:
    50 mm
  • Closing:
    CWC
  • Length:
    175 mm
  • Table:
    D
88114

Details

  • Size:
    50 mm
  • Closing:
    ACWC
  • Length:
    175 mm
  • Table:
    D
88120

Details

  • Size:
    50 mm
  • Closing:
    ACWC
  • Length:
    175 mm
  • Table:
    F
88126

Details

  • Size:
    50 mm
  • Closing:
    CWC
  • Length:
    175 mm
  • Table:
    E
88131

Details

  • Size:
    50 mm
  • Closing:
    CWC
  • Length:
    175 mm
  • Table:
    F
59998

Details

  • Size:
    65 mm
  • Closing:
    CWC
  • Length:
    190 mm
  • Table:
    D
86126

Details

  • Size:
    65 mm
  • Closing:
    ACWC
  • Length:
    190 mm
  • Table:
    D
88116

Details

  • Size:
    65 mm
  • Closing:
    ACWC
  • Length:
    190 mm
  • Table:
    E
88127

Details

  • Size:
    65 mm
  • Closing:
    CWC
  • Length:
    190 mm
  • Table:
    E
66112

Details

  • Size:
    80 mm
  • Closing:
    ACWC
  • Length:
    203 mm
  • Table:
    D
86662

Details

  • Size:
    80 mm
  • Closing:
    CWC
  • Length:
    203 mm
  • Table:
    F
88117

Details

  • Size:
    80 mm
  • Closing:
    ACWC
  • Length:
    203 mm
  • Table:
    E
66082

Details

  • Size:
    80 mm
  • Closing:
    CWC
  • Length:
    203 mm
  • Table:
    D
57625

Details

  • Size:
    100 mm
  • Closing:
    CWC
  • Length:
    229 mm
  • Table:
    F
57712

Details

  • Size:
    100 mm
  • Closing:
    ACWC
  • Length:
    229 mm
  • Table:
    E
57749

Details

  • Size:
    100 mm
  • Closing:
    CWC
  • Length:
    229 mm
  • Table:
    E
36982

Details

  • Size:
    100 mm
  • Closing:
    ACWC
  • Length:
    229 mm
  • Table:
    D
44922

Details

  • Size:
    100 mm
  • Closing:
    CWC
  • Length:
    229 mm
  • Table:
    D
58486

Details

  • Size:
    150 mm
  • Closing:
    CWC
  • Length:
    267 mm
  • Table:
    E
85102

Details

  • Size:
    150 mm
  • Closing:
    ACWC
  • Length:
    267 mm
  • Table:
    E
37042

Details

  • Size:
    150 mm
  • Closing:
    ACWC
  • Length:
    267 mm
  • Table:
    D
44472

Details

  • Size:
    150 mm
  • Closing:
    CWC
  • Length:
    267 mm
  • Table:
    D
37102

Details

  • Size:
    200 mm
  • Closing:
    ACWC
  • Length:
    292 mm
  • Table:
    D
88123

Details

  • Size:
    200 mm
  • Closing:
    ACWC
  • Length:
    292 mm
  • Table:
    F
88129

Details

  • Size:
    200 mm
  • Closing:
    CWC
  • Length:
    292 mm
  • Table:
    E
60212

Details

  • Size:
    200 mm
  • Closing:
    CWC
  • Length:
    292 mm
  • Table:
    D
43662

Details

  • Size:
    225 mm
  • Closing:
    ACWC
  • Length:
    305 mm
  • Table:
    D
43632

Details

  • Size:
    225 mm
  • Closing:
    CWC
  • Length:
    305 mm
  • Table:
    D
88118

Details

  • Size:
    225 mm
  • Closing:
    ACWC
  • Length:
    305 mm
  • Table:
    E
88130

Details

  • Size:
    225 mm
  • Closing:
    CWC
  • Length:
    305 mm
  • Table:
    E
37162

Details

  • Size:
    250 mm
  • Closing:
    ACWC
  • Length:
    330 mm
  • Table:
    D
58487

Details

  • Size:
    250 mm
  • Closing:
    CWC
  • Length:
    330 mm
  • Table:
    E
88134

Details

  • Size:
    250 mm
  • Closing:
    CWC
  • Length:
    330 mm
  • Table:
    F
60272

Details

  • Size:
    250 mm
  • Closing:
    CWC
  • Length:
    330 mm
  • Table:
    D
60332

Details

  • Size:
    300 mm
  • Closing:
    ACWC
  • Length:
    356 mm
  • Table:
    D
60422

Details

  • Size:
    300 mm
  • Closing:
    CWC
  • Length:
    356 mm
  • Table:
    D
60512

Details

  • Size:
    375 mm
  • Closing:
    ACWC
  • Length:
    381 mm
  • Table:
    D
59148

Details

  • Size:
    375 mm
  • Closing:
    CWC
  • Length:
    381 mm
  • Table:
    D
88051

Details

  • Size:
    450 mm
  • Closing:
    CWC
  • Length:
    432 mm
  • Table:
    D
88054

Details

  • Size:
    450 mm
  • Closing:
    ACWC
  • Length:
    432 mm
  • Table:
    D
88053

Details

  • Size:
    600 mm
  • Closing:
    CWC
  • Length:
    508 mm
  • Table:
    D
