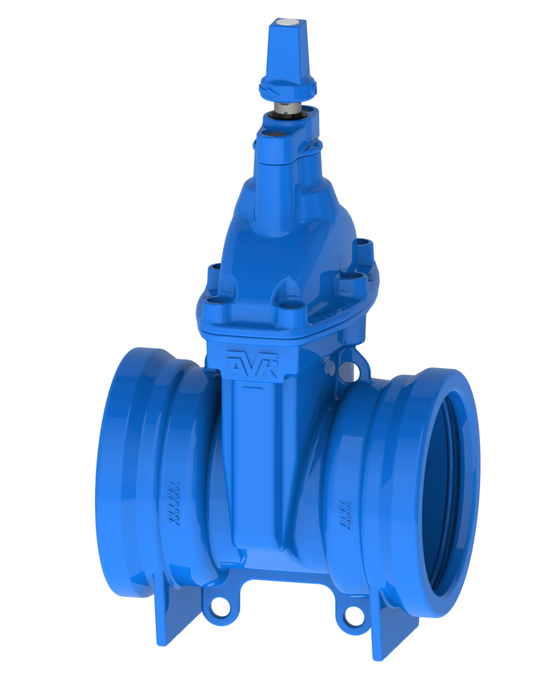

Socketed Resilient Seat Gate Valves

Description

• Pipe OD 232 mm

• Series 2 PVC valves also suit DI, CI and AC pipes

• Suitable for water, sewerage and neutral liquid applications

• Ductile iron, epoxy resin coated body and wedge

• Rubber bended ductile gate

• EPDM O-ring and seal bushing and a stainless steel 431 stem

• Maximum working temperature 40°C

• Cold working pressure of 1600 kPa

• Design compliant with AS2638.2 (80-600 mm)

• Flanges compliant with AS4087 and AS2129

• Socket valves compliant with AS2280

• Epoxy resin coating is fully compliant with AS4158

• Certified to AS4020, suitable for contact with drinking water

• Valves are distinguished by white cap for anticlockwise and red cap for clockwise closing

Part Number Details
12444

Details

  • Size:
    80 mm
  • Closing:
    ACWC
  • Length:
    tbc
  • Pipe OD:
    tbc
  • PVC Type:
    Series 1 White
56349

Details

  • Size:
    80 mm
  • Closing:
    CWC
  • Length:
    tbc
  • Pipe OD:
    tbc
  • PVC Type:
    Series 1 White
37012

Details

  • Size:
    100 mm
  • Closing:
    ACWC
  • Length:
    338 mm
  • Pipe OD:
    122 mm
  • PVC Type:
    Series 2 Blue/Lilac
41882

Details

  • Size:
    100 mm
  • Closing:
    CWC
  • Length:
    338 mm
  • Pipe OD:
    122 mm
  • PVC Type:
    Series 2 Blue/Lilac
37072

Details

  • Size:
    150 mm
  • Closing:
    ACWC
  • Length:
    376 mm
  • Pipe OD:
    177 mm
  • PVC Type:
    Series 2 Blue/Lilac
41892

Details

  • Size:
    150 mm
  • Closing:
    CWC
  • Length:
    376 mm
  • Pipe OD:
    177 mm
  • PVC Type:
    Series 2 Blue/Lilac
43272

Details

  • Size:
    150 mm
  • Closing:
    CWC
  • Length:
    376 mm
  • Pipe OD:
    160 mm
  • PVC Type:
    Series 1 White
43422

Details

  • Size:
    150 mm
  • Closing:
    ACWC
  • Length:
    376 mm
  • Pipe OD:
    160 mm
  • PVC Type:
    Series 1 White
37132

Details

  • Size:
    200 mm
  • Closing:
    ACWC
  • Length:
    463 mm
  • Pipe OD:
    232 mm
  • PVC Type:
    Series 2 Blue/Lilac
43302

Details

  • Size:
    200 mm
  • Closing:
    CWC
  • Length:
    463 mm
  • Pipe OD:
    225 mm
  • PVC Type:
    Series 1 White
43542

Details

  • Size:
    200 mm
  • Closing:
    CWC
  • Length:
    463 mm
  • Pipe OD:
    232 mm
  • PVC Type:
    Series 2 Blue/Lilac
43332

Details

  • Size:
    225 mm
  • Closing:
    CWC
  • Length:
    498 mm
  • Pipe OD:
    250 mm
  • PVC Type:
    Series 1 White
43482

Details

  • Size:
    225 mm
  • Closing:
    ACWC
  • Length:
    498 mm
  • Pipe OD:
    250 mm
  • PVC Type:
    Series 1 White
43572

Details

  • Size:
    225 mm
  • Closing:
    CWC
  • Length:
    498 mm
  • Pipe OD:
    259 mm
  • PVC Type:
    Series 2 Blue/Lilac
60242

Details

  • Size:
    225 mm
  • Closing:
    ACWC
  • Length:
    498 mm
  • Pipe OD:
    259 mm
  • PVC Type:
    Series 2 Blue/Lilac
37192

Details

  • Size:
    250 mm
  • Closing:
    ACWC
  • Length:
    524 mm
  • Pipe OD:
    286 mm
  • PVC Type:
    Series 2 Blue/Lilac
43512

Details

  • Size:
    250 mm
  • Closing:
    ACWC
  • Length:
    524 mm
  • Pipe OD:
    280 mm
  • PVC Type:
    Series 1 White
43602

Details

  • Size:
    250 mm
  • Closing:
    CWC
  • Length:
    524 mm
  • Pipe OD:
    286 mm
  • PVC Type:
    Series 2 Blue/Lilac
60392

Details

  • Size:
    300 mm
  • Closing:
    ACWC
  • Length:
    531 mm
  • Pipe OD:
    315 mm
  • PVC Type:
    Series 1 White
60452

Details

  • Size:
    300 mm
  • Closing:
    CWC
  • Length:
    531 mm
  • Pipe OD:
    345 mm
  • PVC Type:
    Series 2 Blue/Lilac
60362

Details

  • Size:
    300 mm
  • Closing:
    ACWC
  • Length:
    531 mm
  • Pipe OD:
    345 mm
  • PVC Type:
    Series 2 Blue/Lilac
54470

Details

  • Size:
    375 mm
  • Closing:
    CWC
  • Length:
    tbc
  • Pipe OD:
    tbc
  • PVC Type:
    Series 2 Blue/Lilac
