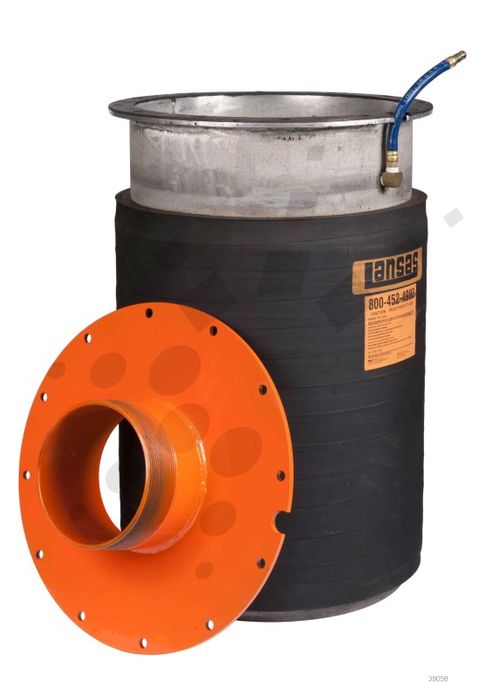

Multi Size Interchange Plugs (Removable Ends)

Description

• Interchangeable ends provide versatile plug that will suit multiple bypass applications

• Ends quickly interchange

• Removes the need for multiple sized plugs

• Ends also available in pipe and flanged options

• Can be customised up to 300 mm bypass

• Plugs can be made up to 2400 mm

• Note, plugs are supplied without ends. If ends are required, they must be ordered separately.

Part Number Details
#39058

Details

  • Head Pressure:
    10 psi
  • Length:
    610 mm
  • Maximum Diameter:
    375 mm
  • Minimum Diameter:
    540 mm
  • Nominal Size:
    375-525 mm
  • Pressure:
    20 psi
  • Weight:
    20 kg
#39060

Details

  • Head Pressure:
    10 psi
  • Length:
    1067 mm
  • Maximum Diameter:
    375 mm
  • Minimum Diameter:
    768 mm
  • Nominal Size:
    375-750 mm
  • Pressure:
    20 psi
  • Weight:
    40 kg
#39064

Details

  • Head Pressure:
    10 psi
  • Length:
    610 mm
  • Maximum Diameter:
    438 mm
  • Minimum Diameter:
    616 mm
  • Nominal Size:
    450-600 mm
  • Pressure:
    20 psi
  • Weight:
    26 kg
