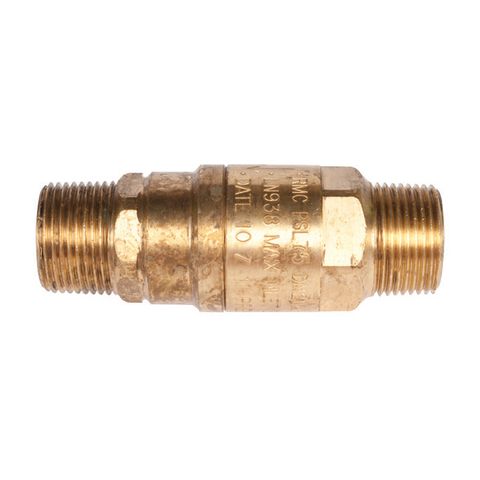

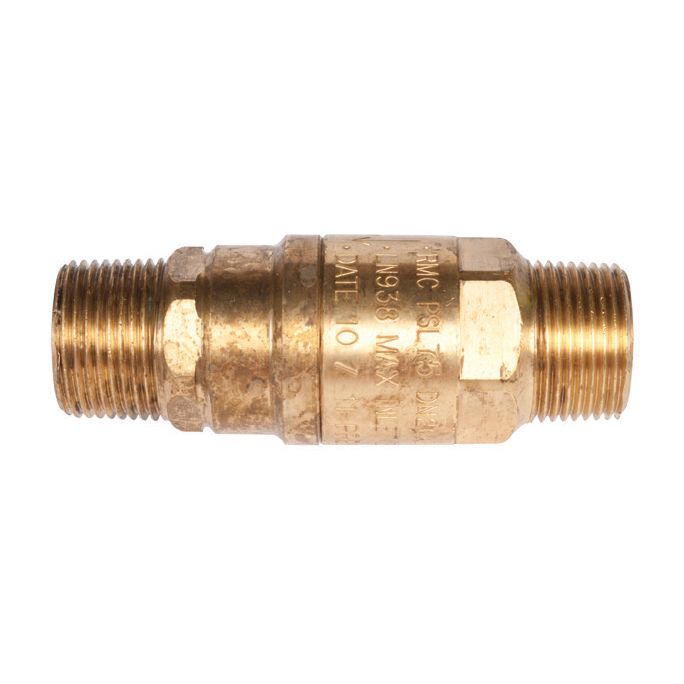

Reliance Pressure Limiting Valves

Description

• Limits downstream pressure to pre-set maximum


• Maintains constant maximum outlet pressures


• Typically used in commercial and industrial installations where downstream devices require protection from fluctuating supply pressure


• Prevents over pressure situations developing by limiting the outlet to a pre-set maximum


• Valve remains open until maximum is reached


• Typically used on high pressure water heaters, water meter assemblies and water softeners


• High pressure and temperature tolerances


• Stainless steel seat


• DZR brass construction, compliant with AS4020


• Compatible with both horizontal and vertical installations


• Maximum inlet pressure 2000 kPa


• Maximum operating temperature 80°C

Part Number Details
58106

Details

  • Size:
    20 mm
  • Configuration:
    M x M
  • Length:
    70 mm
  • Pressure:
    500 kPa
