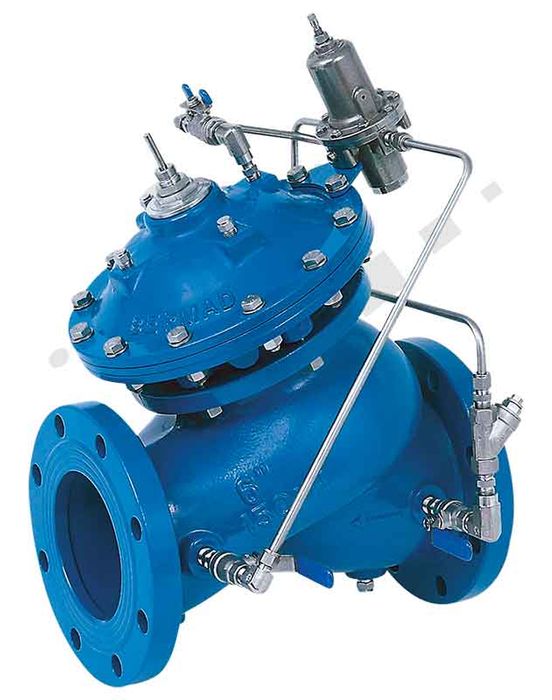

Bermad Series 720 Pressure Reducing Valves

Description

• Length 415 mm

• Limits downstream pressure to pre-set maximum

• Maintains constant maximum outlet pressures

• Typically used in commercial and industrial installations where downstream devices require protection from fluctuating supply pressure

• Hydraulically operated, diaphragm actuated control valve

• Reduces upstream pressure to constant downstream pressure

• Unaffected by fluctuating demand or varying upstream pressure

• Typically used in flow reduction, cavitation protection and burst protection applications

• Full bore, obstacle free, semi-straight flow eliminates turbulence

• Double chamber design for moderated valve reaction and diaphragm protection

• Cavitation damage resistant raised stainless steel seat

• Easy maintenance due to inline serviceability

• Fusion bonded epoxy coated ductile iron body

• Temperature range 0-80°C

• PN16 valves listed, also available to suit PN35 installations, please enquire

• Available in sizes up to 500 mm

• Full data sheets available upon request

• Many other varieties of valves to suit many flow regulation and control applications are available, please enquire
