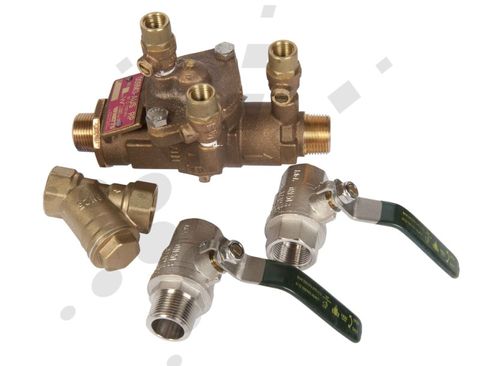

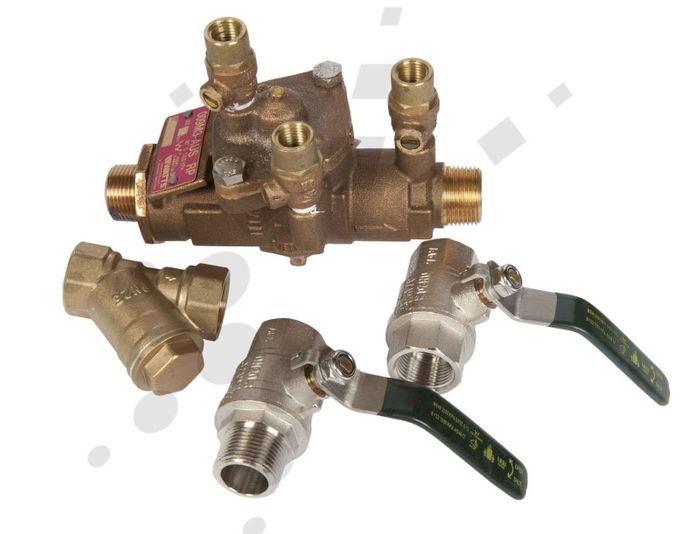

Watts 009 RPZ Kits

Description

• Length 1130 mm

• Designed to provide maximum protection to potable water supply

• Used on high risk applications which would result in health hazard if compromised

• All backflow is dumped from device preventing any risk of contamination

• Single cover access for ease of maintenance

• Two inline independent check valves

• Captured springs for safe maintenance

• Internal relief valve for reduced installation clearances

• Replaceable seats for economical repair

• Large body passages provide low pressure drop

• Compact, robust, space saving design

• Bronze body with silicone rubber discs (20-50 mm) and epoxy coated cast iron body (65-80 mm)

• Temperature range 5-82°C (20-50 mm) 5-43°C (65-80 mm)

• Maximum working pressure 1200 kPa

• Includes strainer and valves

• Does not include gasket kits

• Resilient seat gate valves are clockwise close
