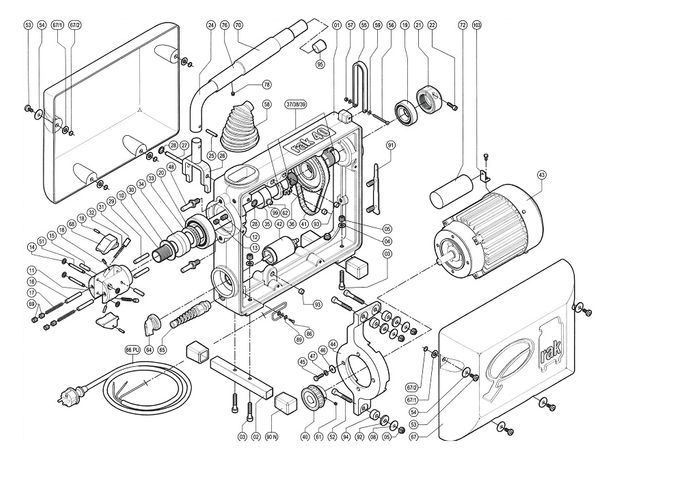

Rak 41 Parts

Part Number Details
54948

Details

  • Description :
    Cable Jaws
  • Parts:
    68
55395

Details

  • Description :
    Frame
  • Parts:
    1
19000

Details

  • Description :
    Footing
  • Parts:
    2
19001

Details

  • Description :
    Screw
  • Parts:
    3
19003

Details

  • Description :
    Nut
  • Parts:
    5
19004

Details

  • Description :
    Washer
  • Parts:
    8
19007

Details

  • Description :
    Screw
  • Parts:
    22
55007

Details

  • Description :
    Spring Sleeve
  • Parts:
    31
55360

Details

  • Description :
    Bearing
  • Parts:
    19
55361

Details

  • Description :
    Bearing
  • Parts:
    20
55362

Details

  • Description :
    Ring Nut
  • Parts:
    21
55363

Details

  • Description :
    Lever Arm
  • Parts:
    24
55364

Details

  • Description :
    Pin
  • Parts:
    25
55365

Details

  • Description :
    Lever Arm Fork
  • Parts:
    26
55366

Details

  • Description :
    Lever Arm Axle
  • Parts:
    27
55367

Details

  • Description :
    Washer
  • Parts:
    28
55368

Details

  • Description :
    Pressure Pin
  • Parts:
    29
55369

Details

  • Description :
    Pressure Disk
  • Parts:
    30
55396

Details

  • Description :
    Rubber Foot Pads
  • Parts:
    6
55397

Details

  • Description :
    Bolt
  • Parts:
    7
55398

Details

  • Description :
    Main Shaft Drive
  • Parts:
    10
55399

Details

  • Description :
    Main Shaft Drive
  • Parts:
    10
56301

Details

  • Description :
    Jaw Carrier System
  • Parts:
    11
56302

Details

  • Description :
    Screw
  • Parts:
    12
56303

Details

  • Description :
    Screw
  • Parts:
    13
56304

Details

  • Description :
    Pin
  • Parts:
    15
56305

Details

  • Description :
    Spring Pin
  • Parts:
    16
56306

Details

  • Description :
    Spring
  • Parts:
    17
56307

Details

  • Description :
    Pin
  • Parts:
    18
19008

Details

  • Description :
    Washer
  • Parts:
    54
19009

Details

  • Description :
    Carrier Loop
  • Parts:
    55
19010

Details

  • Description :
    Carrier Pin
  • Parts:
    56
19011

Details

  • Description :
    Pin Locking Nut
  • Parts:
    57
19012

Details

  • Description :
    Rubber Cover
  • Parts:
    58
54017

Details

  • Description :
    Washer
  • Parts:
    59
55008

Details

  • Description :
    Spring
  • Parts:
    32
55288

Details

  • Description :
    Thrust Bearing
  • Parts:
    33
55289

Details

  • Description :
    Thrust Collar
  • Parts:
    34
55290

Details

  • Description :
    Carrier Ring
  • Parts:
    35
55291

Details

  • Description :
    Tooth Belt Pulley
  • Parts:
    36
55294

Details

  • Description :
    Tooth Belt
  • Parts:
    41
55295

Details

  • Description :
    Forward/Reverse Switch
  • Parts:
    42
55296

Details

  • Description :
    1hp Electric Motor
  • Parts:
    43
55300

Details

  • Description :
    Motor Mount
  • Parts:
    44
55301

Details

  • Description :
    Screw
  • Parts:
    45
55302

Details

  • Description :
    Washer
  • Parts:
    46
55303

Details

  • Description :
    Spring Washer
  • Parts:
    47
55304

Details

  • Description :
    Hose Guide Mount Bolt
  • Parts:
    48
55306

Details

  • Description :
    Guide Bolt
  • Parts:
    51
55307

Details

  • Description :
    Mounting Bolts
  • Parts:
    52
55308

Details

  • Description :
    Cover Screws
  • Parts:
    53
19013

Details

  • Description :
    Motor Pulley Switch
  • Parts:
    61
19015

Details

  • Description :
    Screw
  • Parts:
    62
19016

Details

  • Description :
    Switch Knob
  • Parts:
    64
19017

Details

  • Description :
    Cable Protector
  • Parts:
    65
19018

Details

  • Description :
    5 m Lead Cable
  • Parts:
    66
19019

Details

  • Description :
    Screws
  • Parts:
    69
19020

Details

  • Description :
    Lever Arm Grip
  • Parts:
    70
19021

Details

  • Description :
    Condenser
  • Parts:
    72
19022

Details

  • Description :
    Lever Arm Extension
  • Parts:
    76
19023

Details

  • Description :
    Threaded Pin
  • Parts:
    78
19024

Details

  • Description :
    Screw
  • Parts:
    86
19025

Details

  • Description :
    16 mm Cable Jaws
  • Parts:
    88
19026

Details

  • Description :
    Serrated Washer
  • Parts:
    89
19027

Details

  • Description :
    Plastic Closure Plug
  • Parts:
    90
19028

Details

  • Description :
    Isolation Disk
  • Parts:
    92
19029

Details

  • Description :
    Insulator Tubes
  • Parts:
    93
19030

Details

  • Description :
    Isolation Disk
  • Parts:
    94
19031

Details

  • Description :
    Cap
  • Parts:
    95
19120

Details

  • Description :
    Toolholder
  • Parts:
    91
53945

Details

  • Description :
    Toolholder Stud
  • Parts:
    91a
55309

Details

  • Description :
    Side Cover
  • Parts:
    67
