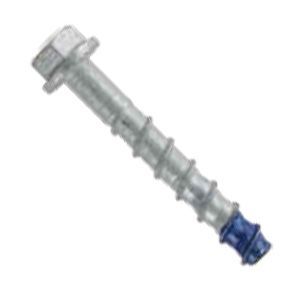

Blue-Tip Screw-Bolt 10 x 120 Zinc 25pk

Description

Powers Blue-tip screw-bolt anchors have many unique features and benefits that make this innovative anchor exceptionally versatile for use in a variety of base materials, including concrete, block and brick. Optimum performance is obtained using a combination of patented design concepts.

The benefit to the engineer is higher load capacities, while the benefit to the user is easy and fast installation. Suitable for any trades, including carpenters, formworkers, tie down applications, racking installers, construction and more. Screw bolt anchors can be used in concrete, lightweight concrete, hollow core concrete, block, brick and stone.

Features:

  • ETA approved for cracked and uncracked concrete
  • ETA approved for seismc loading
  • ETA approved for redundant non-structural applications (6mm)
  • F120 fire rated
  • Ratchet teeth on the underside of the hex washer head lock against the fixture
  • Removable and vibration resistant
  • Low installation torque
  • Fast installation with Immediate high strength loading
  • No expansion forces
  • Can be installed closer to the edge than traditional mechanical anchors
  • Anchors are one-piece units featuring a finished hex head formed with an integral washer
  • Hex Head Zinc Silver finish
  • Patented dual lead thread and a chamfered tip
  • Specially matched to the clearance hole, the need for layout or hole spotting is eliminated.
  • No expansion forces
  • Can be installed at a shallower embedment reducing the chance of striking reinforcing bars or embedded cables.

    • Part Number Details
    95564
