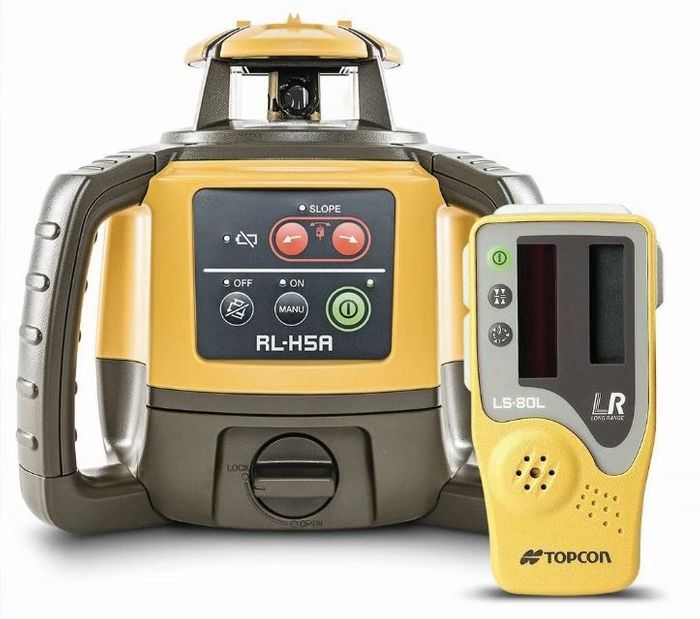

RL-H5A LASER Rechargeable Standard Inc. - LS-80L Receiver, Holder 6

Description

The Topcon RL-H5A is a next generation self-levelling construction laser. It has excellent long range accuracy and is simple to use for checking elevations. With electronic self-levelling, you can turn the unit on and begin work in seconds. If the laser is disturbed on the job it re-levels itself automatically. The self-levelling motors are accurate to a tolerance of 10 arc seconds.

Long range operation up to 400m is simple, with the power and range to cover a 800m diameter job site. The RL-H5A gives you the option of up to 60 hours of continuous usage with the rechargeable battery pack or 100 hours with 4 D size batteries.

Plus, with the IP66 rating, the unit is heavy duty, withstanding dust and heavy rain.

Ideal for:

  • Geopositioning
  • Land Surveying
  • Topography & As-Built
  • Geospatial Monitoring
  • Civil Engineering & Design
  • Construction Survey/Layout
  • Foundation and Exterior

    • Specifications:

  • Accuracy to H: +/- 10 arc seconds
  • Horizontal +/- 5 degrees self-levelling range
  • 800 metre working area
  • 600RPM rotation speed
  • IP66 water/dust rating
  • Operating time: 60 hours on NiMH
  • Operating temperature -20 to 50 degrees
  • 205mm high x 211 wide x 172mm long

    • Kit Includes:

  • RL-H5A laser
  • LS-80L or LS-100D sensor
  • Sensor holder
  • Batteries: rechargeable
  • Chargers
  • Carry case

    • Part Number Details
    95945
