Stremaform Fine Mesh - Metal Pour Break System 1000 x 2400mm

Description

Stremaform® flat is used for medium-sized structural components, installed between the upper and lower reinforcement layers. Stremaform® in the concrete gives a rough surface that satisfies the requirements of an indented joint according to DIN 1045-1 and/or Eurocode 2 and does not need scabbling. A metal water stop or a PVC/rubber waterbar support cage can be integrated in our factory if required. Delivery is made precisely in accordance with your layout specifications.

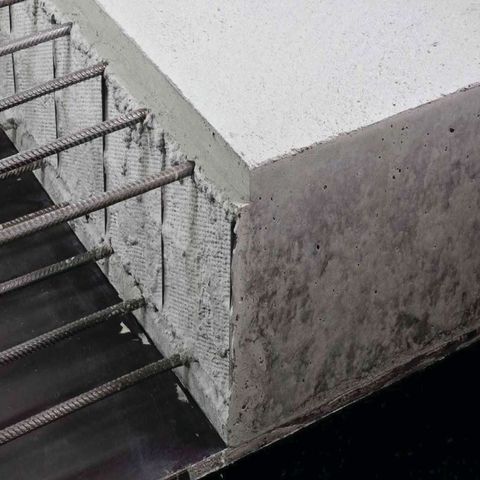

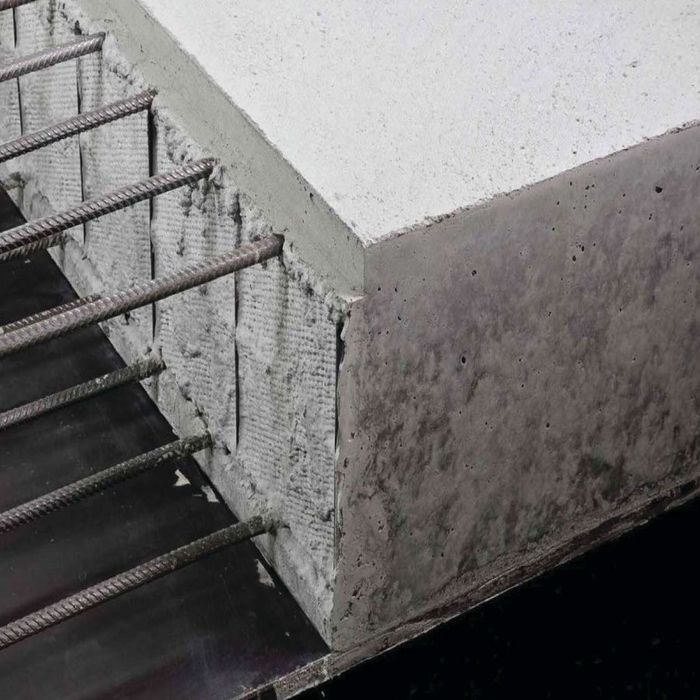

Stremaform® formwork elements are used as lost formwork in floor slabs, ceilings and walls. The expanded metal
that is welded between the bars of a specially designed reinforcing steel mesh gives rise to a rough surface The
reinforcement can be continued without a break into the second concrete pour.


Benefits include:


  • Stremaform® is suited for all types of working joints.


  • Site drawings are quickly transformed into factory produced elements


  • The formwork lies between the continuous reinforcement layers so that there is no need to interrupt the reinforcement


  • Elements manufactured to your specifications


  • No stripping or reworking necessary


  • Available with or without metal waterstops, or PVC/rubber water bar cages


  • Full range of accessories available including spacers with fibre-reinforced concrete rail, support anchors, upright elements, box out, shutters, and kickers for use between base slab/wall and wall/roof slab

    • Part Number Details
    100101
