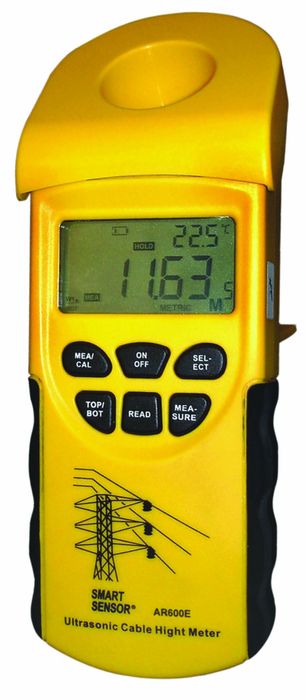

CABLE HEIGHT METER

Description

This professional digital cable height meter uses ultrasonic technology to measure cable height and provide a fast and accurate reading.

It enables cable height measurement in a range from 3 to 23 metres high; measuring cables that are a minimum of 25mm in diameter. This convenient tool can also measure the height of up to 6 cables together at once.

Offering a wide horizontal measurement range up to 18 metres, it provides a reading showing the distance between one wire and the next.

User friendly and easy to operate, Jaybro's ultrasonic cable height meter is ideal for construction and utilities applications.

Features:

  • Large measuring sensor for higher accuracy
  • Digital backlit LCD display for day and night use
  • Easy to aim and operate
  • Temperature compensation enables automatic correction for temperatures under -10 and above 40 degrees Celsius
  • Also useful for depth measurement of elevator shafts or wells provided there is sufficient width to permit a proper ultrasonic reflection
  • Ideal for electrical work, overhead cable maintenance, forestry work, industrial and mining operations and more
  • Measure cables, tree branches, elevator shafts, depth of wells and more
  • Specially designed for non-contact and fast measurement for cable height and horizontal distance
  • Measurement range up to 23m
  • Inherently safe operation
  • Metric/imperial system selectable
  • Measurement of up to 6 wires at a time
  • Auto power-off after 2 minutes
  • Low battery indicator

    • Specifications:

  • Yellow ABS Plastic
  • LCD Backlight Display measures 52mm x 26mm
  • Minimum measuring range 3 metres
  • Maximum measuring range for 25mm cables: up to 23m
  • Maximum measuring range for 12mm cables: up to 15m
  • Maximum measuring range for 5.5mm cables: up to 12m
  • Maximum measuring range for 2.5mm cables: up to 10m
  • Horizontal measuring range from 3 to 18m
  • Accuracy: 0.5%
  • Minimum gap between wires: 150mm
  • Bottom and Top modes for measuring heights of lowest or highest cables
  • Auto power off, backlight display, battery Indicator
  • Choose between imperial or metric units
  • Takes 1 x 9V Battery (not included)
  • Unit measures approximately 70 mm x 65 mm x 200 mm
  • Weighs 182g

    • Part Number Details
    100411
