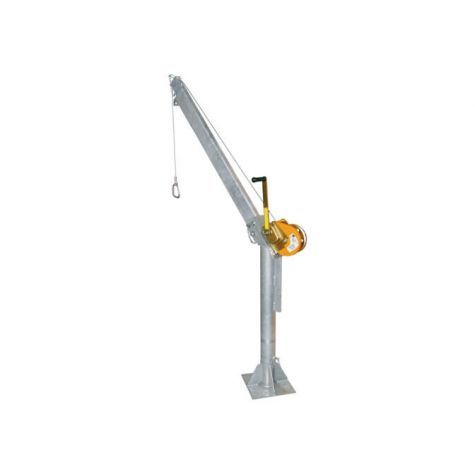

Davit Arm Base System W/Basic Winch

Description

Davit arm and base are coupled together to provide a fixed anchorage point for work winches or rescue systems. Commonly used for entering confined spaces, the davit arm has the ability to be removed from the base and moved to sites where there are other fixed bases. The arm can swivel and provides easy access in many confined situations.

  • working load SWL 130 kg - Davit Arm & Base Kit
  • Measures 2060 mm high x 710 mm wide
  • Packed size 1.2 x 1.2 metres
  • Meets Australian Standards AS/NZS 1891.4
  • Coforms to AS 4100-1998, AS1170.2-2011 (Davit Arm & Base)
  • Conforms to EN795 Class B
  • Bolts hold the upper tube to the base, but these can be loosened to allow for 360 degrees swiveling
  • Base weight 13 kg, Arm weight 19 kg
  • 12 month warranty
  • UV resistant metal
  • Includes davit arm, base and winch
  • Must be fitted to a structural anchorage capable of withstanding 15kN working load
  • Secure to ground with 8 x M16 epoxy bolts
  • Base plate dimensions 300mm x 300mm

    • Note that this item should be certified after installation by a qualified engineer and requires certification every 12 months.

    Part Number Details
    100691
